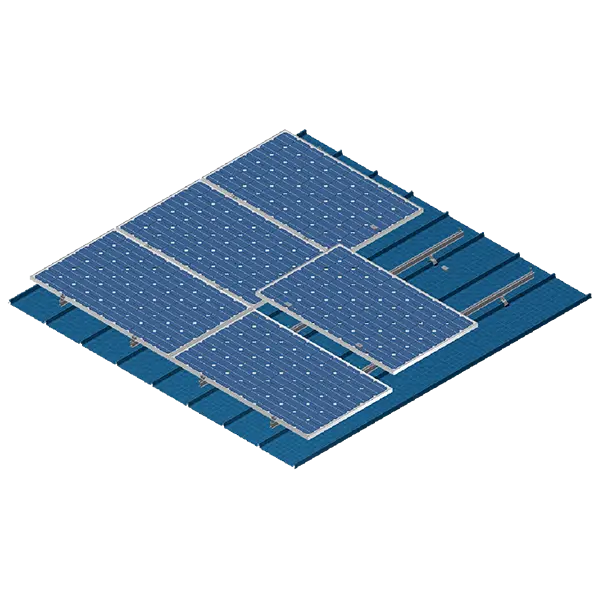

Mounting System
。Specialized for different types of standing seam roof.
。No roof penetration, no problem in leaking proof.
。High holding forces with stainless steel screws.
。Installation is easier and faster, saving both time and money.

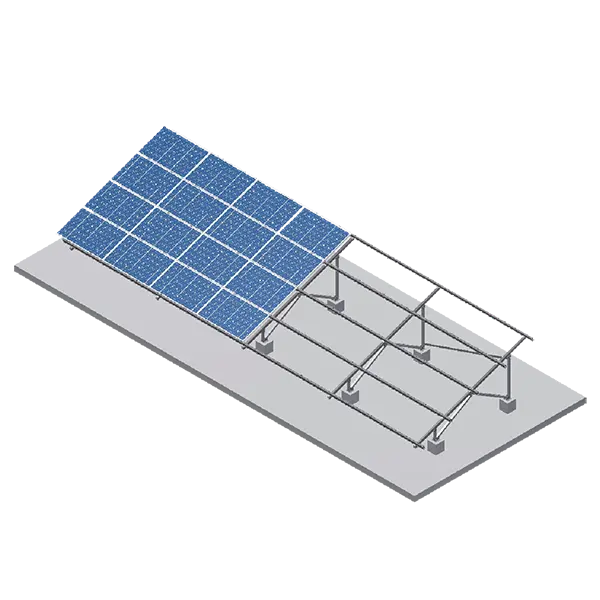

Mounting System
。Specially designed for large-scale PV plant, suitable for both screw pile and concrete base.
。Longer rail span help to reducing the material cost and saving installation time.
。Patented rail connector simplifies the cross connection and splice connection.

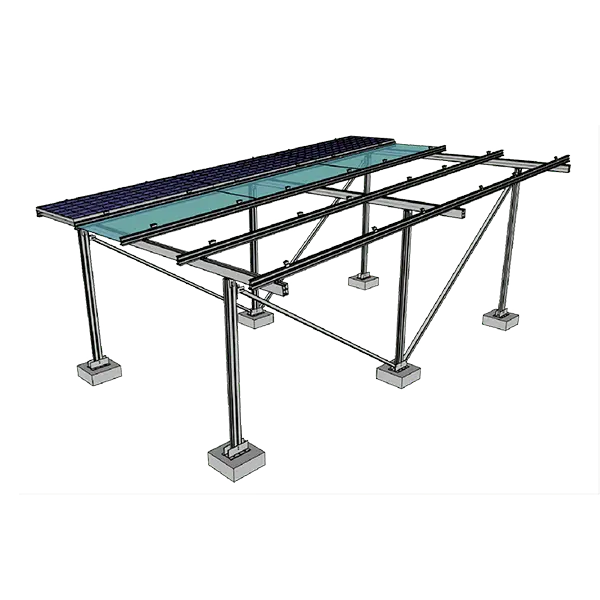

Mounting System
。The product adopt the structural design of the viaduct, suitable for dome or parking spaces.
。The waterproof treatment are customize, suitable for frameless and frame solar panels.
。Large span designation between extrusion tube and the foundation pile, save install wages.
。The main extrusion tube and cross tube used in connectors, easy installation.
。The main connection extrusion tube screwed with stainless bolts, which fasten total structure with high security.

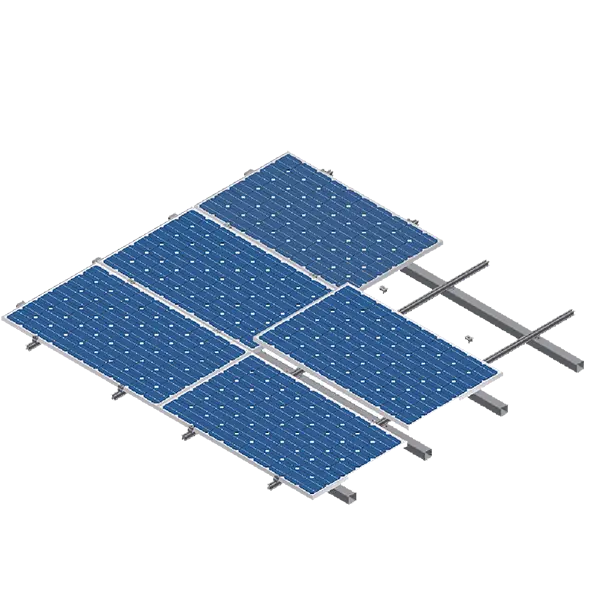

Mounting System
․Suitable for universal frame consisting of H-, C-beams or square pipes.
․Installation is easier and faster, saving both time and money.

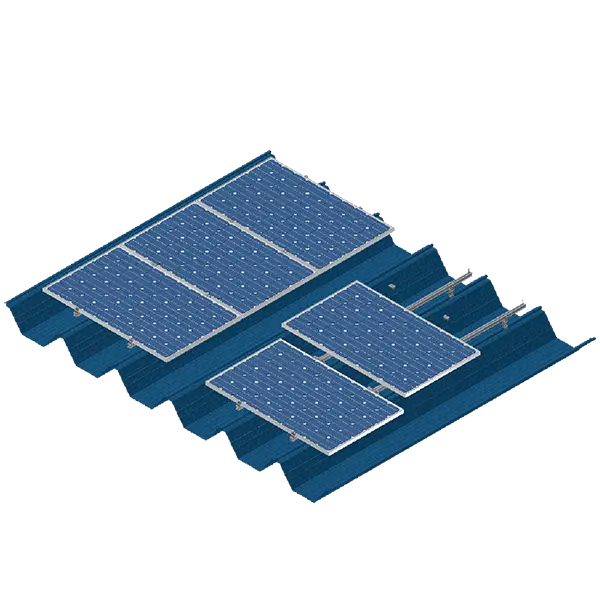

Mounting System
․Fastening sets consisting of a special h-shaped bracket, module height
․Suitable for universal corrugated and trapezoidal metal roofs.
․The Unique domed washer molds to form a leak proof seal.
․Price advantage due to special design for quick installation.
Power System

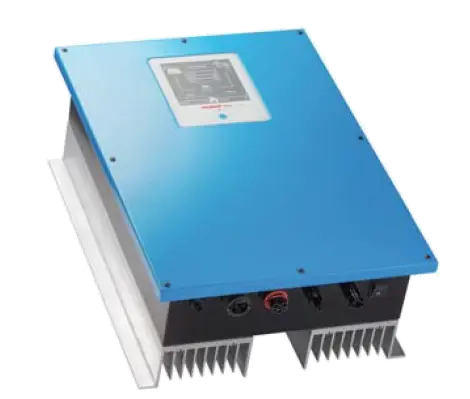

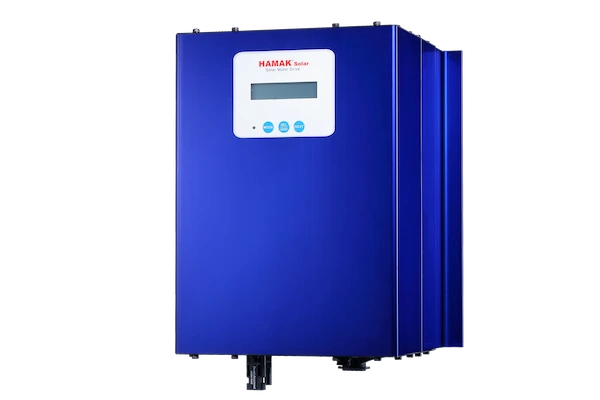

●Built-in MPP Tracker.
●Auto-control and detection by 2 external sensors.
●Gives maximum torque even at min. sunlight, no need any battery.
●suitable for water pump, water aerator and factory blower...etc.
Power System

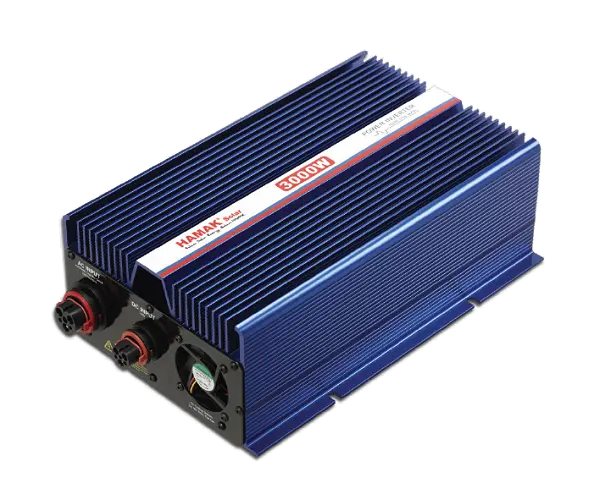

●Pure Sine wave output.
●Built-in MPP Tracker.
●Supporting DC/AC power output.
●Built-in Automatic Transfer Switch(ATS).
●LED indicators for battery status.
●“Plug & Play" installation.

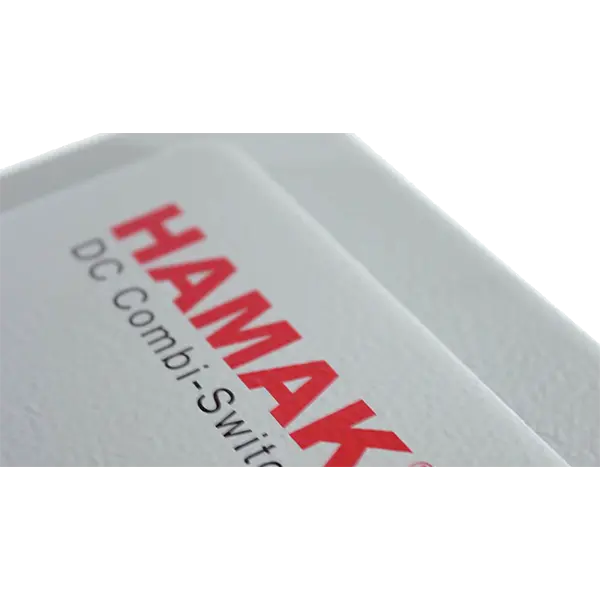

Power System
●IP65/IP66 stainless lockable enclosure w/ powder coating.
●Utility-scale PV power plant applicable.
●NEC requirements compliant.
●3000Vdc electric strength & insulation resistance test certified.
●Built-in touch-safe fuse holder & SPD with visual fault indicator for PV circuit and surge protection.
●Busbar design for high consistency of product quality and low probability of false wiring.
●Separate or simultaneous disconnection of PV strings,making servicing flexible and efficient.
Power System

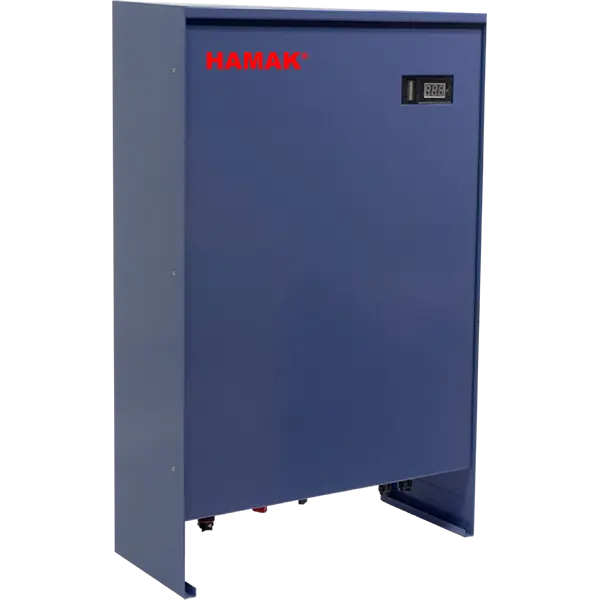

●Pure sine wave of power output, built-in Automatic Transfer Switches(ATS)
●Built-in MPPT solar charge controller.
●Power expansion available by parallel connection.
●Supporting 3 phase 4 wire system.
●"Plug & Play" installation.
Power System

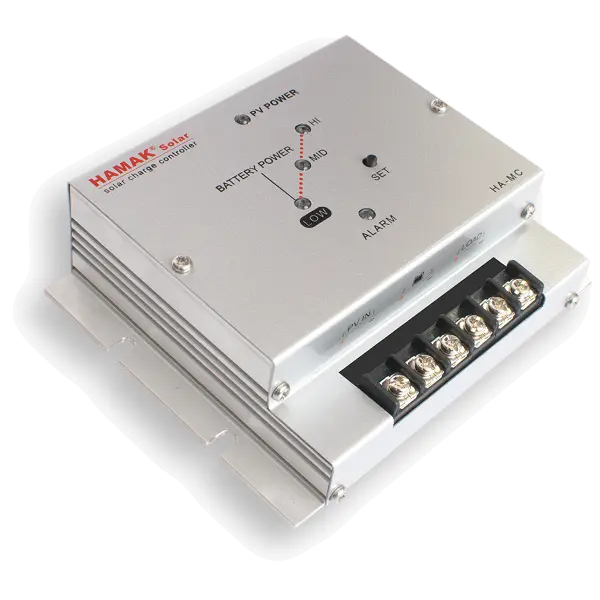

●Protect for over charge, over discharge, over load and polarity.
●Load output can be control by press key, to set day / night automatically start, or set switching section at night time.
●The product adopts Micro controller Unit program control precision and high reliability.
●Used high power chip on driven system, durable, high efficiency and stability.
●Exclusive for charge control of solar power, can be used in road lights, landscape lights, signal lights and warning lights.
Power System

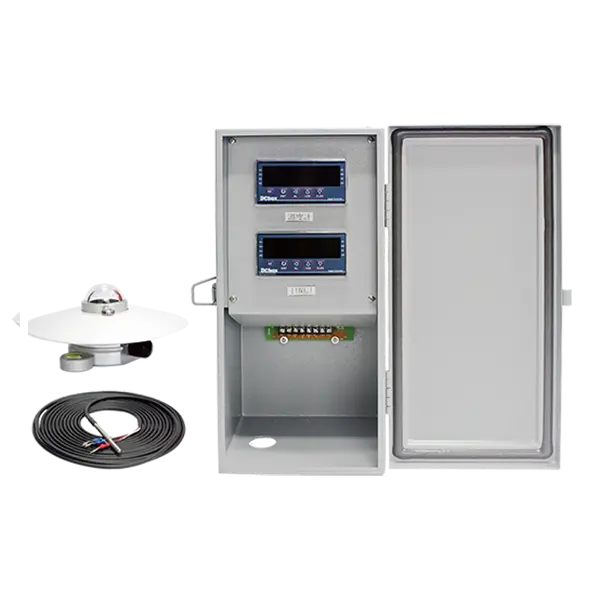

●RS-485 communication.
●Address ID & baud rate programmable.
●Integrated pyranometer and temperature sensor.
●Supporting AC/DC 100-240V power supply.
●IP65 stainless lockable enclosuresw/ powder-coated.
●Easy installation and maintenance.
●Dimension(WxHxD):183x385 x190mm.
Power System
●Pure Sine Wave
●Conversion efficiency up to 98%.
●Rated 360Vdc input, reducing system loss.
●Built-in ATS.
●Short circuit / Overload / Over temperature Protection
